Interactive Kiosk & 3D Product Drafting
Design and drafting for freestanding iPad stands and interactive kiosks — 3D product work that runs a straight line to the station information module concepts a decade later.
3D products, not just signs

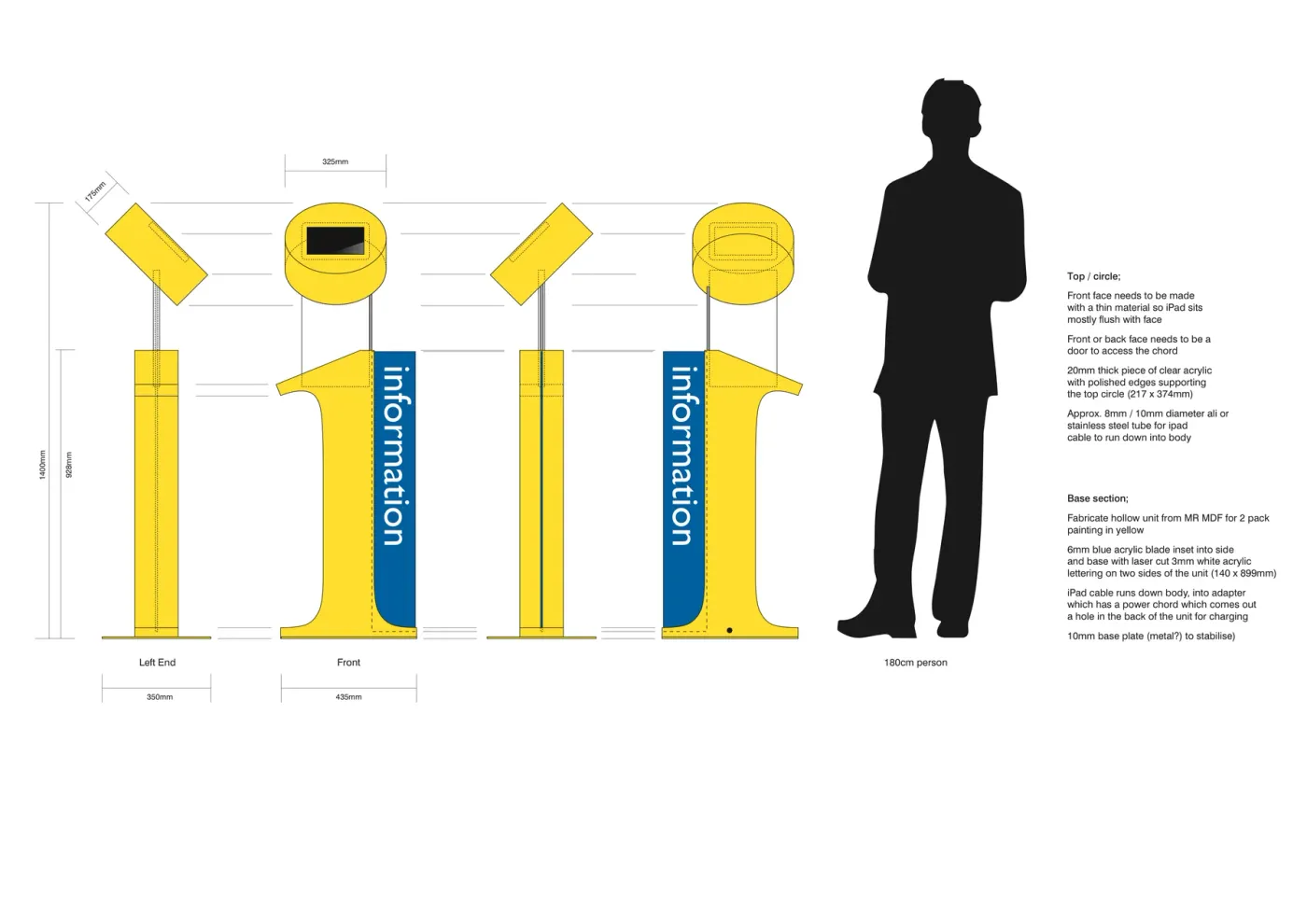

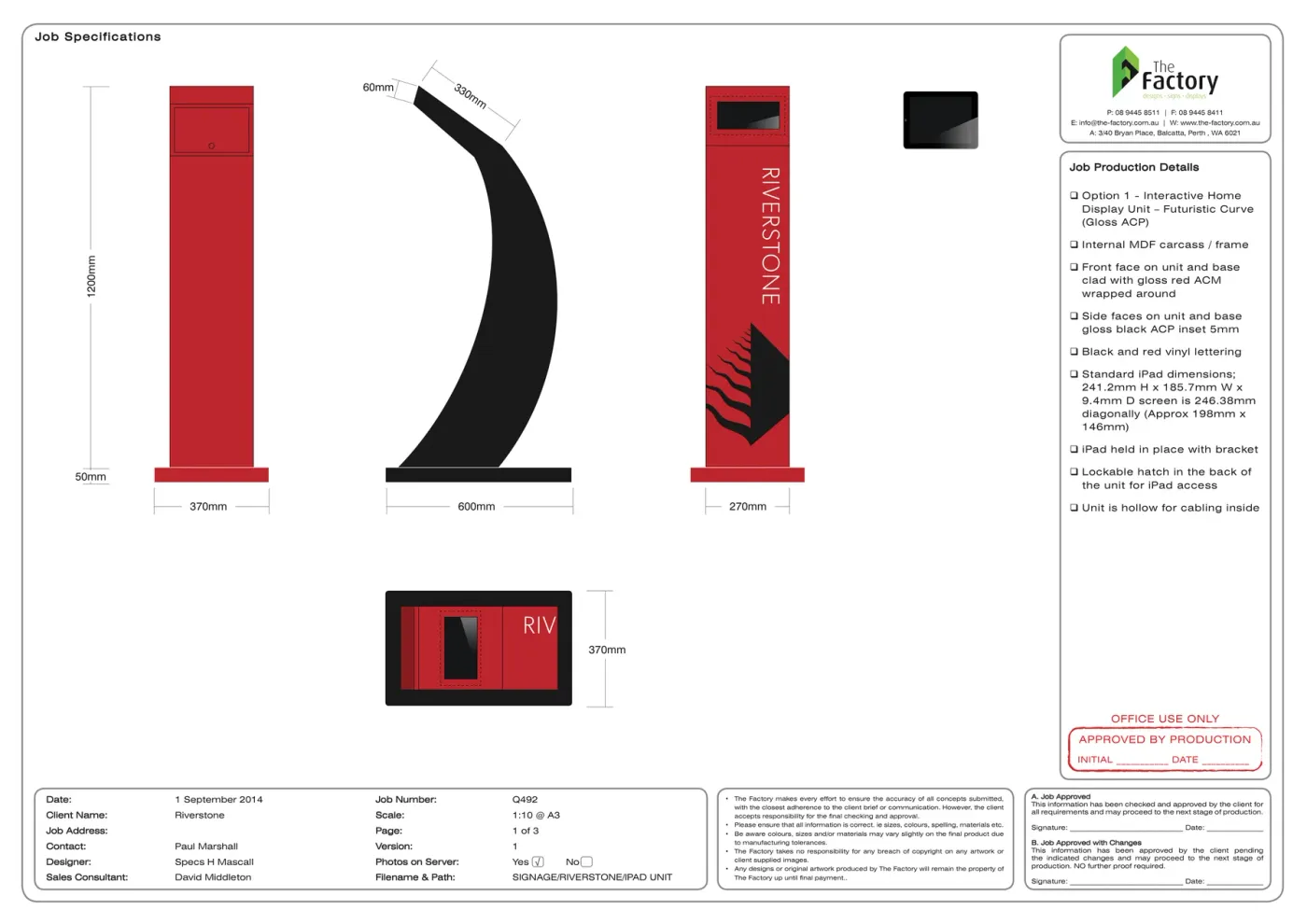

Alongside signage and exhibitions, The Factory did a steady stream of freestanding product design: iPad stands, interactive kiosks, totems and enclosures that had to hold a screen at the right height, survive public use, and open up for servicing. I designed and drafted several of these, working from a brief to dimensioned construction drawings: form options, a human-scale check, cable routes, access panels, ballast and fixing detail.
Why it’s here

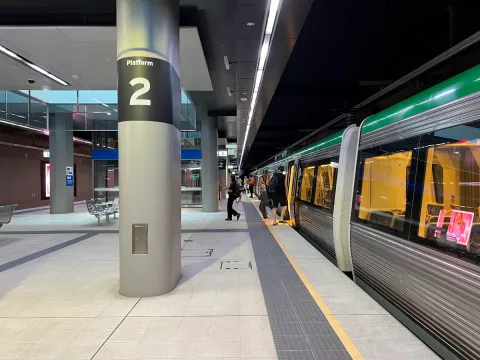

This is the physical ancestor of the digital work. Designing a housing for a public-facing screen — where it sits, how a standing person reads it, what happens when someone leans on it — is the same problem as the station information module concepts I later worked on for the Public Transport Authority, just in aluminium and MDF instead of pixels. The kiosk drafting is where the ergonomics and the “public terminal” thinking started.
Hard Skills
Product and kiosk design, dimensioned drafting, ergonomic setout, fabrication specification
Soft Skills
Translating a client brief into a buildable product, designing for public durability and serviceability
